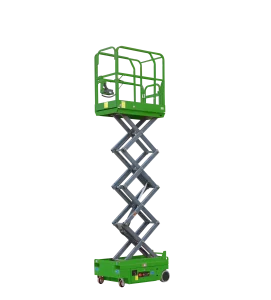

SMALL SCISSOR LIFT
WORKING HEIGHT: 4m, 5m, 6m, 7m

SMALL SCISSOR LIFT
Small scissor lifts, also known as mini scissor lift, are very convenient in daily maintenance work and for variable height light operations.
Simple in design, compact in style and highly efficient indoors, these small scissor lifts have a slender base that makes it possible to fit through standard doorways and help you accomplish a lot around the facility or or tight areas.
We offer two models of small scissor lifts to suit your needs: small mobile scissor lift and small electric scissor lift.






Previous
Next








Previous
Next
PARAMETER TABLE
SMALL MOBILE SCISSOR LIFT
MODEL | PLATFORM SIZE(MM) | LOAD (KG) | PLATFORM HEIGHT(MM) | DIMENSION (mm) | PLATFORM EXTENSION (mm) | WEIGHT (KG) |
TS0.3-2 | 1150*600 | 300 | 1800 | 1280*760*1640 | 550 | 360 |
TS0.3-3 | 1150*600 | 300 | 3000 | 1280*760*1720 | 550 | 390 |
TS0.3-4 | 1150*600 | 300 | 3900 | 1280*760*1800 | 550 | 450 |
TS0.2-5 | 1150*600 | 200 | 4800 | 1430*850*2030 | 550 | 500 |
SMALL ELECTRIC SCISSOR LIFT
MODEL | PLATFORM SIZE (MM) | LOAD(KG) | PLATFORM HEIGHT (MM) | DIMENSION(MM) | PLATFORM EXTENSION (MM) | WEIGHT (KG) |
SPS2 | 1150*600 | 300 | 1800 | 1280*760*1640 | 550 | 600 |
SPS3 | 1150*600 | 300 | 3000 | 1280*760*1720 | 550 | 630 |
SPS4 | 1150*600 | 300 | 3900 | 1280*760*1800 | 550 | 660 |
SPS5 | 1150*600 | 200 | 4800 | 1280*760*1880 | 550 | 690 |
