Standard Lift Table 8

Standard Lift Table

Lifting height 1.9m (6ft)

Loading capacity 1000kg (2204lbs)

Platform size 1.35* 0.8m (4.4*2.6ft)

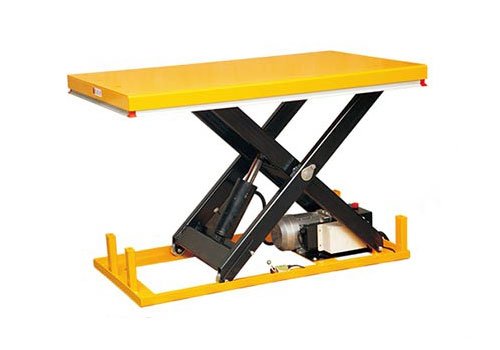

Standard Lift Table Introduction

The standard lift table is one of the MORN featured products with standard travel height, platform size, and load capacity. This product can be manufactured in an advanced large-scale production line. Good quality and high safety performance contribute MORN standard lift table to become popular lift equipment in many countries.

Standard Lift Table for Sale

ModelLoad CapacityPlatform SizeTravel HeightMin.HeightPower
SSL1-11000kg1350x800mm810mm190mm0.75KW
SSL2-1.052000kg1350x800mm820mm230mm0.75KW
SSL4-1.14000kg1700x1200mm860mm240mm2.2KW
SSL4-1.1B4000kg2000x1200mm860mm240mm2.2KW
SSL1-1.51000kg1300x820mm1478mm302mm1.5KW

Video

APPLICATION

Standard Lift Table 9
Standard Lift Table 10
Standard Lift Table 11
Standard Lift Table 12

The electric scissor lift table is widely used in warehouse, factory, logistics center and so on.

DETAILS

HYDRAULIC CYLINDER
MORNLIFT develops its own brand hydraulic cylinder.MORN hydraulic cylinder has outstanding features, including smooth working performance, heavy workload, hard-wearing parts and so on.

Standard Lift Table 13
standard lift table detail

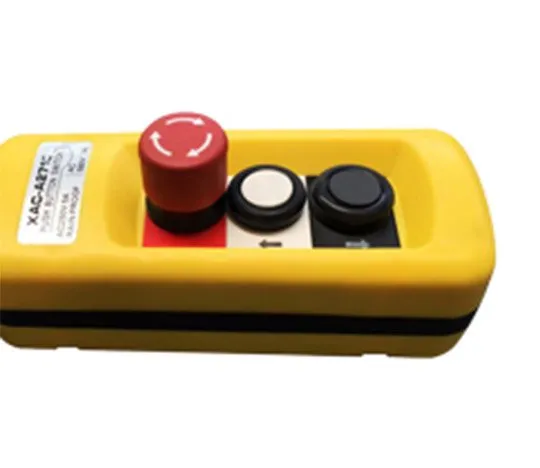

CONTROL BUTTON
Control button that MORN adopted is IP65 grade with good performance and easy control. It controls the lifting and lowering of the platform, as well as the tilt of the platform by press-release and press-hold modes.

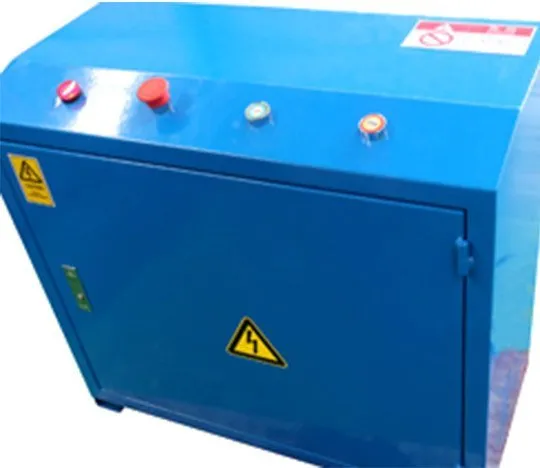

CONTROL BOX
The control box perfectly stores and protect the motor. Also, there are buttons on the box, which bring easy operation.

Standard Lift Table 14
standard lift table

SAFETY TRIP BAR
Safety Trip Bar can effectively prevent the platform from injuring people when the lift comes down. And once the safety trip bars touch people or any stuff, the lift platform will immediately stop lowering.
