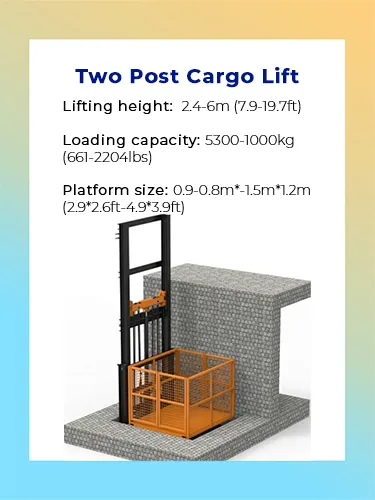

Two Post Cargo Lift 1
banner - two post cargo lift

Two Post Cargo Lift

Lifting height:

2400-6000mm (7.9-19.7ft)

Loading capacity:

300-1000kg (661-2204lbs)

Platform size:

Minimum 800x900mm (2.9×2.6ft)

Maximum 1200x1500mm (4.9×3.9ft)

TWO POST CARGO LIFT

Two-post cargo lift, also called wall mounted goods lift, is suitable for handling goods in small space with smaller capacity. It provides a fast, efficient, convenient and safe access to mezzanines, basements, and any levels in multi-storey buildings for goods. Two-post Cargo Lift is widely used in indoor or outdoor places of the buildings and warehouses to lift goods or pallets between floors.

INTRODUCTION

Two-post cargo lift, also called wall mounted goods lift, is suitable for handling goods in small space with smaller capacity. It provides a fast, efficient, convenient and safe access to mezzanines, basements, and any levels in multi-storied buildings for goods.

TWO POST CARGO LIFT FOR SALE

ModelLoad CapacityPlatform SizeTravel HeightPit DepthDimension
LRL0.5-2.4 500kg1*1m2.4m200mm1.35*1.15*4.5m
LRL0.8-3800kg1.1*1.2m3m200mm1.45*1.35*5m
LRL0.5-3.3500kg0.9*1.3m3.3m200mm1.25*1.45*5.3m
LRL1-61000kg0.9*0.8m6m250mm1.3*0.95*8m
LRL0.3-4300kg1.2*1.5m4m200mm1.55*1.65*6m
Two-post cargo lift is customizable in loading capacity, platform size and travel height.

APPLICATION

two post cargo lift project - MORN LIFT (3)
two post goods lift project - MORN LIFT
two post cargo lift project - MORN LIFT (2)
cargo lift with two post project - MORN LIFT

Two-post Cargo Lift is widely used in indoor or outdoor places of the buildings and warehouses to lift goods or pallets between floors.

High Grade Parts Ensure High Quality of two post cargo lift

All the parts we use are first-class quality and well-known brands. The parts are a standard model with item code, which are very convenient to be replaced. Delivery is also fast for parts.

Model

Load Capacity (kg)

Platform Size (mm)

Travel Height (mm)

Pit Depth (mm)

Dimension (mm)

LRL0.3-4

300

1200×1500

4000

200

1550x1650x6000

LRL0.5-2.4

500

1000×1000

2400

200

1350x1150x4500

LRL0.5-3.3

500

900×1300

3300

200

1250x1450x5300

LRL0.8-3

800

1100×1200

3000

200

1450x1350x5000

LRL1-6

1000

800×900

6000

250

1300x950x8000

Our cargo lifts are customizable in loading capacity, platform size and travel height, based on your work requirements.

MORE CHOICE

Two-post Cargo Lift is widely used in indoor or outdoor places of the buildings and warehouses to lift goods or pallets between floors.
