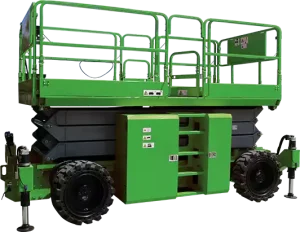

DIESEL SCISSOR LIFT
WORKING HEIGHT: 12m, 14m, 15m, 18m
DIESEL SCISSOR LIFT
Previous
Next
PARAMETER TABLE
| MODEL | PLATFORM SIZE (mm) | PLATFORM HEIGHT(m) | LOAD (kg) | EXTENDED PLATFORM LOAD (kg) | DIMENSION (mm) | WEIGHT (kg) | POWER | DIESEL ENGINE | DRIVING SPEED (km/h) |
| SPS10 | 2900*1500 | 10 | 450 | 120 | 2900*1750*2630 | 4500 | Diesel | Yanmar4TNV88 | 4 |
| SPS12 | 2900*1500 | 12 | 380 | 120 | 2900*1750*2310 | 4750 | Diesel | Yanmar4TNV88 | 4 |
| SPS10 | 3950*1830 | 10 | 1150 | 230 | 4200*2280*1990 | 6850 | Diesel | Yanmar4TNV94L | 6.3 |
| SPS13 | 3950*1830 | 13 | 680 | 230 | 4200*2280*3030 | 7350 | Diesel | Yanmar4TNV94L | 6.3 |
| SPS16 | 3950*1830 | 16 | 680 | 230 | 4200*2280*3250 | 8850 | Diesel | Yanmar4TNV94L | 6.3 |
